DEVS Modeling Language: DEVSML
This work is built on the JAVAML
research done by Vladimir for DEVSML. It was pursued independently by
Jose Luis Martin that resulted in DEVSML with small behavioral
support. The present work aims to integrate these two approaches and provide complete behavioral support to DEVSML by
implementing the proposed universal Atomic and Coupled DEVS schemas at Dunip. We look
forward towards standardization of these schemas with DEVS Standardization committe so that models across the
web can participate in Dynamic Modeling & Simulation over
Net-centric web services.
DEVSML is a novel way of writing DEVS models in XML language. This
DEVSML is built on JAVAML, which is infact, XML implementation of JAVA. The
current development effort of DEVSML takes its power from the
underlying JAVAML(earlier work by Vladimir) that is needed to specify
the behavior of atomic models. We now have the capability to write DEVS
models in DEVSML, both atomic and coupled through the developed DTDs.
The DEVSML models are tranformable back'n forth to java and to DEVSML.
It is an attempt to provide interoperability between various models and

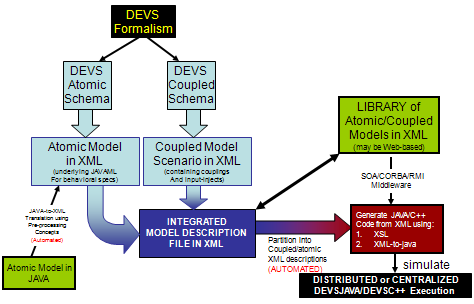

create dynamic scenarios. The key concept is shown in the figure below:
Figure 1: Basic concept with respect to Automation of DEVS models using
DEVSML

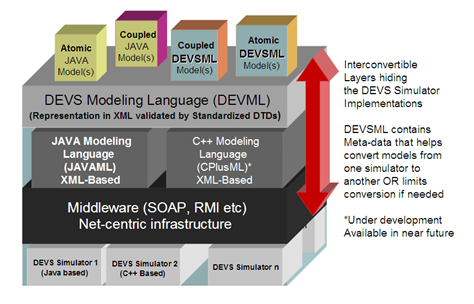

Figure 2: DEVS Transparency &Net-centric Model Interoperability using DEVSML Layered Architecture
The concept shown above is based on DEVSML Layered architecture that promotes DEVS transparency. The basic concept is a part in overall web
enabled infrastructure where such atomic models are dynamically coupled and simulated over SOA. Development is underway to make the DTDs SOA
capable. The figure below shows various other acronyms like DoDAF, which is Department of Defense Architecture Framework. The present work
aims to empower DoDAF with a repository of 'interoperable' models defined under DEVS Formalism. More details on the approach can be found
in references section.

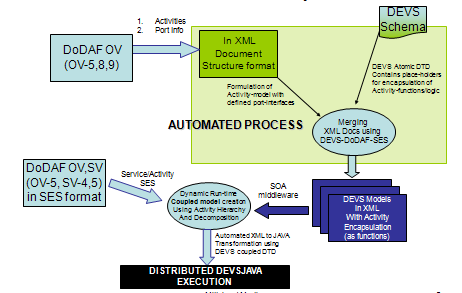

Figure 3: Process Methodology showing how automated modeling using XML can provide M&S to DoDAF documents
Finall this work is a part of the overall DEVS-DODAF Testing & Evaluation Strategy where M&S is
integrated enough to be a part of design process.
The initial concept (done in 2006) is available at DEVSML-Automation using XML for DEVS-Based Testing and Evaluation .pdf
Related References
- C.9: Bernard P. Zeigler, Saurabh Mittal, Xiaolin Hu, Towards a Formal Standard for Interoperability in M&S/Systems of Systems Engineering, Critical Issues in C4I, AFCEA-George Mason University Symposium, May 2008
- C.8: JL Risco-Martin, Saurabh Mittal, et.al, From UML Statecharts to DEVS State Machines using XML, Multi-paradigm Modeling, IEEE/ACM International Conference on Model-Driven Engineering Languages and Systems, Nashville September 2007, among Best papers invited to Transactions of SCS.
- C.7: Saurabh Mittal, JL Risco Martin, Bernard P. Zeigler, DEVS-Based Web Services for Net-centric T&E, Summer Computer Simulation Conference (SCSC'07), San Diego, July 2007
- C.6: Saurabh Mittal, JL Risco Martin, Bernard P. Zeigler, DEVSML: Automating DEVS Execution over SOA Towards Transparent Simulators, Special Session on DEVS Collaborative Execution and Systems Modeling over SOA, DEVS Integrative M&S Symposium DEVS' 07, Spring Simulation Multi-Conference, March 2007
- C.5: JL Risco-Martin, Saurabh Mittal, et.al, A W3C XML Schema for DEVS Scenarios, DEVS Integrative M&S Symposium DEVS' 07, Spring Simulation Multi-Conference, March 2007
- C.4: Saurabh Mittal, Amit Mitra, Amar Gupta, Bernard P. Zeigler, Strengthening OV-6a Semantics with Rule-Based Meta-models in DEVS/DoDAF Based Life-cycle Architecture Development, IEEE-Information Reuse and Integration (IRI06) Conference, Special section on DoDAF, Hawaii September2006
- C.3: Bernard P. Zeigler, Saurabh Mittal, Enhancing DoDAF with a DEVS-based System Lifecycle Development Process, In Proceedings of IEEE International Conference on Systems, Man and Cybernetics, SMC05, Hawaii 2005
